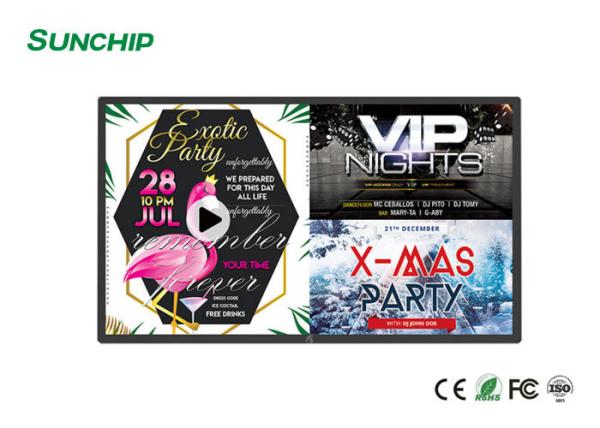

32 inch lcd display panel touch screen android interactive digital signage board media player with WIFI 4G Ethernet
List of Features
Easy setup and plug and play!
Auto Start when plug in the power adapter
Rooted Android OS
Non-Touch
WIFI, Bluetooth, optional LAN and 4G
USAGE:
Plug in the power adapter, and immediately the Android display will turn on
(no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and let it play!
Specifications: (MotherBoard)
| CPU | Rockchip RK3288 Cortex-A17 Quad core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| ROM | EMMC 8GB/16G/32G/64G optional default: 8GB |
| Display interface | LVDS (single way,6 bit dual-way, 8 bit dual-way), Resolution max 1920x1080, support 7"-84" display |
| EDP interface, Resolution max 4K |
| Screen voltage | Support 3.3V/5V/12V(optional) |
| Touch Screen | I2C interface (support resistive touch, capacitive touch) Support USB IR multi touch, sonic multi touch, optical multi touch |
| Network | RJ45 interface, ethernet 10/100/1000M |
| Wi-Fi 802.11b/g/n, BT4.0 |
| Support 4G LTE |
| Image rotation | Support 0°, 90°, 180°, 270°, manual control or automatic, gravity (optional) |
| RTC | Built in internal battery for Real time clock |
| interfaces | Support MIPI camera, max 5MP |
| Support USB camera, max 2MP |
| HD out |
| 6*USB HOST (Support USB camera @500w, USB printer, USB stick, mouse, keyboard, standard USB peripherals) |
| Serial ports x 3(1*UART+2*UART or RS232), support external devices (NFC module, printer, card reader etc.) |
| 6*IO |
| TF card slot |
| D classamplifier,5W*2 8R |
| support microphone |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback |
| image | Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify |
| Power supply | input:AC100-240V.50-60HZ, output: DC12V, 3A |
Product Scenarios:
PACKAGING DETAILS
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.
Pre-sale Service
Our professional team will serve on line for 24h for the customers.
If it is standard touch screen/ kiosk of our model, we will offer competitive price accordingly.
If clients have requirement of touch screen/ kiosk, our designing & sales team will provide professional advice on your respected project and will make every effort to make your project running.
After-sale Service
If any problems, you will get our reply within 24 hours. Solution will be offered instantly. We have professional technician to help solve any problem or direction during operating.
SHENZHEN SUNCHIP TECHNOLOGY CO., LTD is a leading company for integrating the whole industrial chain product, the main supplier for Digital Signage system & Embedded solution that focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS & Linux OS.
We have a professional 160+ employees’ team that including 100+ R&D engineers. We can provide one-stop service for Product definition, R&D of hardware & software, product schematic design, ID design, PCB layout, BOM scrubbing, High-quality order manufacturing, Good after-sales service and Diversified delivery modes for PCBA+Software, Customized software development, OEM&ODM products,
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
